Metal Building Custom Options

Residential three car metal garage building with side lean for storage and porch area

we can make your building work for you!

At Angus Portable Buildings we offer a variety of options and accessories to help you design your perfect metal building. With a wide range of doors, windows, colors, and more, we aim to help you get the most out of your building. We also offer custom designs and can work with you to create a building that fits your needs. With our metal building options, you are sure to get the perfect design.

Click headings to jump each section.

Colors

Windows

Frame Outs

Doors

Skylights

Accessories

Anchors

Need expert assistance with designing your building?

Get A Quote

BACK TO MAIN MENU

Red and earth brown two bay all vertical metal shop building.

colors

Metal building color options: white, black, galvalume, slate blue, barn red and evergreen.

We offer 14 premium color options for your building. Choose any color combination you like!

All painted colors include our exclusive Sherwin Williams 20 year paint warranty.

Metal building color options: pewter grey, quaker grey, clay, burgandy, pebble beige, sandstone, rawhide, and earth brown

Enjoy an exclusive 20 year Sherwin Williams paint warranty on all metal buildings.

Wainscotting

Want a dynamic color combination?
Our wainscotting option adds a contrasting color to the lower portion of the building walls.

Free Wainscotting Upgrade on buildings with horizontal siding.

Additional cost for Wainscotting Upgrade on buildings with vertical siding

Horizontal Siding

with

Wainscotting

Vertical Siding

with

Wainscotting

Color Screws

Polish off the details with color match screws!

Example of color match screws for metal building.

Red residential metal four bay side garage building showing off roll up door options.

doors

Rollup Doors

Rollup doors offer a compact design with minimal manual effort to operate. Rollup doors can be added to any building once the building side or end has been framed and closed with sheet metal.
Standard roll up doors come with an exterior latch which can be locked.
Available in 8 sizes!

*In most cases the building side leg height MUST be at least 1' taller than door height

**Dimensions listed below as Width x Height

Illustration of metal building roll up door sizes: 6'x6', 6'x7', 8'x7', and 9'x7'.

Illustration showing metal building roll up door sizes: 8'x8', 9'x8', 10'x8' and 10'x10'.

Heavy Duty
Chain Hoist Doors

Chain Hoist Rollup Doors allow doors to be opened by a load chain without having to physically lift the weight of the door.

Chain Hoist doors come with an interior latch which can be locked.

Available in 9 sizes up to 14'x14'.

Please note these doors do not include automatic openers.

*In most cases the building side leg height MUST be at least 1' taller than door height

**Dimensions listed below as Width x Height

Illustration showing metal building chain hoist heavy duty roll up door sizes: 12'x8', 12'x10', 13'x10' and 14'x10'.

Illustration showing chain hoist heavy duty roll up door sizes: 10'x12', 12'x12', 14'x12', 12'x14' and 14'x14'.

View of open roll up doors from inside metal garage.

Two car metal garage view of exertior roll up doors.

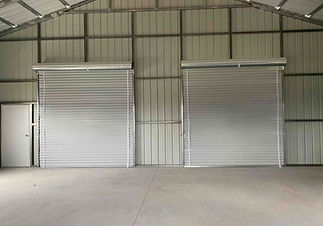

View of roll up doors from inside of building.

Overhead
Doors

Overhead Doors or "panel doors" open upward on a horizontal tract. Available in solid panels or add a panel of windows at the top of the door. Please note these doors do not include automatic openers. Aftermarket automatic opening systems can be purchased separately.

*In most cases the building side leg height MUST be at least 1' taller than door height.

Exterior view of overhead style garage door on a metal garage building.

Interior view of overhead style panel garage door on metal garage building.

Exterior view of overhead style panel door with window pane options on two car metal garage building.

Interior detail view of overhead style panel door track.

Door COlor

Polish off your garage style with coordinating color for your rollup door!

Color options available for roll up doors on metal buildings: Barn Red, Pewter Grey, Sandstone, Evergreen, Pebble Beige and Earth Brown.

Example of metal garage building with earth brown colored roll up doors.

Exterior view of metal garage building with barn red roll up doors.

Exterior view of metal side garage with evergreen roll up doors.

45° Trim Kit

Style your Rollup Door with our 45° Trim Kit.

Changes the door framing from 90º square to a 45° angled frame.

Example of metal barn building with 45 degree trim kit on three roll up doors.

Exterior view of metal side garage building with 45 degree trim kits on four roll up doors.

Two bay metal shop building with 45 degree trim kit on large roll up doors.

Garage Door
accessories

Add brush guards to fill in the gaps on the sides and top of your roll up doors.
Contact us for availability and pricing.

Photo illustration of how roll up door brush gaurds help close the gaps around the door framework.

Entry Doors

Add entry doors to your building for quick and easy access without sacrificing security.

Our entry doors consist of galvanized steel panels attached to a heavy-duty aluminum frame with an energy efficient insulated foam core.
Available in two sizes.

Choose between a solid style or upgrade with a FREE diamond window!

Examples of two entry style doors offered in sizes: 32"x72" and 36"x80". Add a free diamond window or choose a solid door option.

windows

Windows

Windows are a great option to add ventilation and natural light to your building.
Available in two sizes and include heavy duty aluminum framing with screening.

Practial and attractive metal garage barn with covered side lean showcasing frameout options.

frame outs

Frame Outs

Custom Frame Outs come in many shapes and sizes and are useful for a variety of purposes.
A custom frame out consists of adding a header which allows the standard 5' on center vertical framing to be eliminated thus creating customized openings.

Available in clear span openings as wide as 20'.

Squared 90º and 45° frame outs available.

Here are some examples and uses of custom frame outs.

Residential carport with a vertical style roof and custom side frameouts with 45 degree trim kits.

Open air mare motel style metal barn with custom side frame outs.

Want to install your own windows and/or doors?

Provide your door and window specifications and let us frame out custom openings for you!

Example of metal building with customized frame out openings for windows and doors.

Learn more about our skylight options for our metal garage buildings.

skylights

Skylights

Our skylight option offers plenty of natural light without compromising durability.

Industrial grade polycarbonate panels available in 3'x7' and 3'x5' sheets.

Available with vertical style roof only.

Interior detailed view of metal shop garage building with skylights added.

accessories

Accessories

Gable Vent

Add a vent to your gabled end of your building to help let out heat and moisure.

Detailed look at gable end vent on a metal garage building.

Foam Closure

Foam closure is a gap filler to help seal your building from pests and the elements. Fits snuggly between the framing and sheet metal edges filling the natural corrugated gaps at the ends of sheet metal.

Radiant Barrier
Insulation

Our double bubble foil sided radiant barrier can reduce radiant heat transfer in your building as well as reducing condensation.

Radiant barrier insulation works by reflecting surface heat that would otherwise transfer into your building. Our bubble foil has a double layer of polyethylene bubbles that acts as a natural thermal barrier to significantly reduce condensation and moisture build up.

It is important to understand that radiant barrier insulation has little to no "R-Value" as it is engineered to stop the transfer of heat. Thus, it works completely different than traditional insulations.

You can choose to have our radiant barrier insulation installed on all walls and ceiling, select walls or just the ceiling.

Detailed view of our radiant barrier insulation product and it's application on a metal building ceiling.

Gauge

Sheet Metal

Standard Sheet Metal

5 Rib 29 Gauge

Upgrade Option

26 Gauge

Example of various shades of five rib sheet metal.

Framing

Standard Framing:

14 Gauge

2 1/2" x 2 1/2" Square Galvanized Steel Framing

Upgrade Framing:

12 Gauge

2 1/4" x 2 1/4" Square Galvanized Steel Framing

anchors

Anchors

Securing your metal building, carport or RV cover is integral to our mission and engineering standards.

When you purchase your building with us, we automatically include the correct type and quantity of engineer certified anchors for your building.
The correct type and quantity of certified anchors is one of the main factors maintaining our certified wind ratings.

You should always know what type of anchors and how many will be used when you purchase your metal building.
We do NOT install Non-Certified buildings.

We use certified mobile home or auger anchors for ground, gravel, rock or asphalt foundations and certified concrete expansion bolts for concrete slab foundations.
There is no need for the customer to pre-drill or pre-install anchor fittings. Our crews handle anchoring the structure during your building installation.

Detailed view of our two certified ground anchors and an upclose view of their application.

Detailed view of our certified concrete bolt anchors and their application on a metal building anchored to a concrete slab.
